0212 549 68 62MS 125E Economic Busbar Bending, Cutting and Punching Machine 12x125mm
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
MS125E machine process copper busbars up to 12x125 mm. Perfect design of it enables you to mount apparatus into machine in a very short time for cutting, punching and bending processings. It has options of settings by switch, hand or foot pedal control on bending process. You may lift busbar up and make smooth punching from bottom due to fly wheel in front of machine. Machine is portable to provide easier and better operation facilities to the customers.
Technical Specifications |
MS125E |
|||
|
Mechanic Information |
Cutting |
Maximum Capacity |
mm |
12x125 |
|
Punching |
Minimum – Maximum Diamater |
mm |
Ø4~21 |
|
|
Bending |
Bending Range in Degrees |
mm |
80°-150° |
|
|
|
Width x Length x Height |
cm |
70x105x110 |
|
|
Space |
m³ |
0.80 |
||
|
Total Weight |
kg |
300 |
||
|
Electrical Information |
Power Consumption |
Engine |
kW |
1,1 |
|
Control System |
Manual MS 125 |
|
|
|
|
Electrical System |
Operating Voltage |
V |
400 |
|
|
Controlling Voltage |
V |
24 DC |
||
|
Transformer |
KVA |
0,1 |
||
|
Normal Operation Amperes |
A |
3 |
||
|
|
Maximum Operation Pressure |
Bar |
170 |
|
|
Valve Controls |
V |
24 DC |
||
|
Oil Capacity |
Minimum |
Lt |
6 |
|
|
Maximum |
Lt |
12 |
||
Standard Tools |
|
Punching Tool |
|

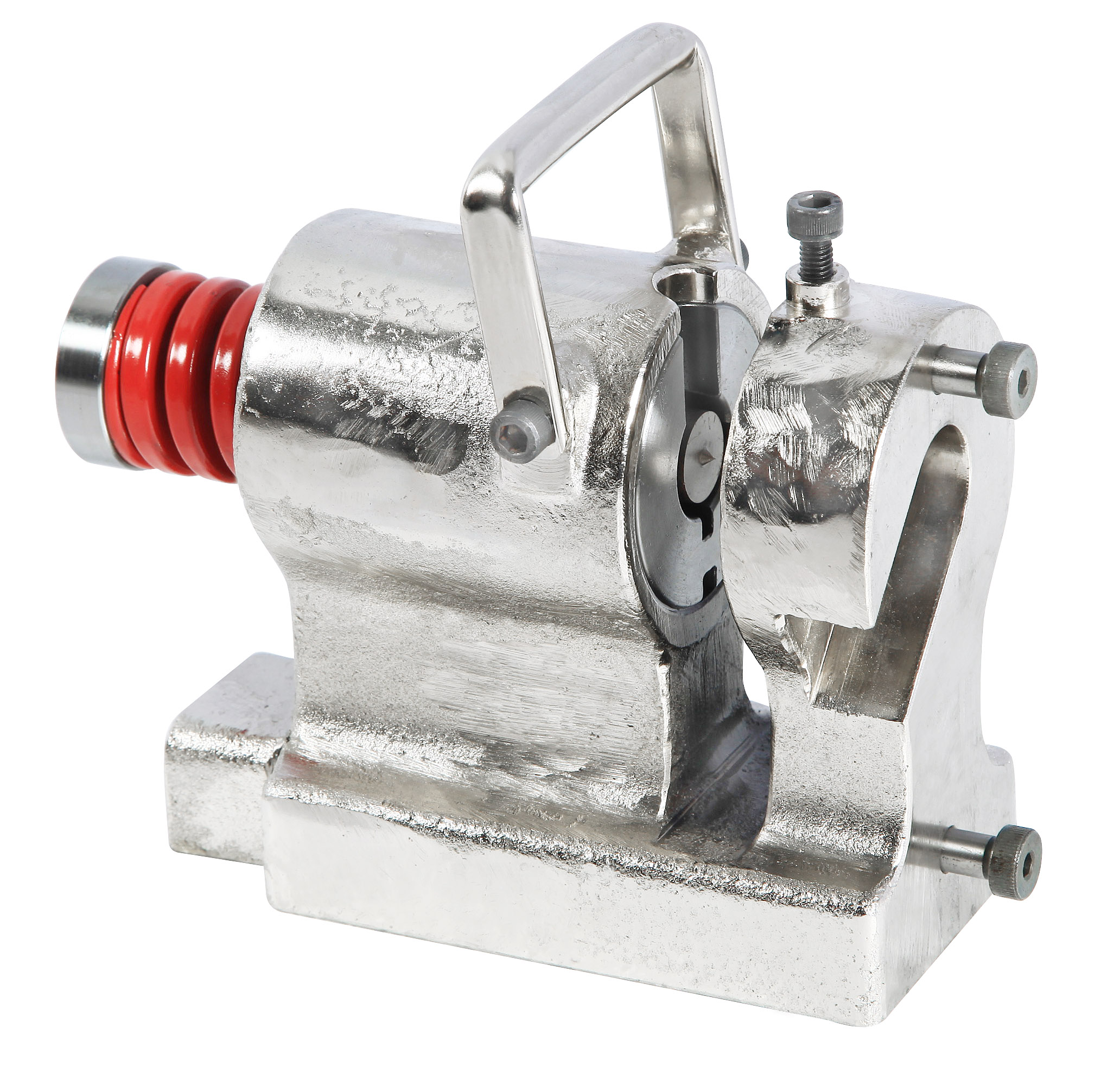

Cutting Tool |
|
Wide Bending Tool R10 |
|
Wide Bending Tool Die R10 |
|
Narrow Bending Tool R5 |
|
Narrow Bending Tool Die R5 |
|
Foot switch |
PUNCHING TOOL TABLE |
|||
|
Metric |
Free parts with machine |
Optional Round |
Optional |
|
3 |
|
4 |
|
|
4 |
|
5 |
|
|
6 |
6.6 |
7 |
7x11 |
|
8 |
9 |
10 |
9x13 |
|
10 |
11 |
12 |
11x15 |
|
12 |
14 |
13 |
13x17 / 14x18 |
|
14 |
16.5 |
|
16x19 |
|
16 |
|
18 |
|
|
18 |
|
19 |
|
|
20 |
|
21 |
|
