0212 549 68 62PS 125 PLC Busbar Bending, Punching, Cutting Machine 12x125mm
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Machine process copper bars up to 12x125 mm. Perfect design of it enables you to mount tools into machine in a very short time for cutting, punching and bending processing. It has options of programmable accurate degree settings, hand or foot pedal control on bending process. You may lift bar up and make smooth punching from bottom due to fly wheel in front of machine.
- 7″ Touch screen
- To be able to enter the degree of bending
- Choosing the bending tool
- To make the offset for angle
- Precision bending adjustment 2 times
- Saving memory of 100 program
- 10 different bending degree in a program
- Programs can be saved by name
- Hydraulic moving body
- Up and down the screen to see the main body of values
- Copper carrying stand is available for a long copper
- Adjustable of lenght linear ruler
- Foot switch
- Cabinet for put of tools
- Waste discharge channel
- Ring bolt hole for lift
- Easly tools change
- Cutting and Punching without burr
Technical Specifications |
PS125 |
|||
|
Mechanic Information |
Cutting |
Maximum Capacity |
mm |
12x125 |
|
Punching |
Minimum – Maximum Diamater |
mm |
Ø4~21 |
|
|
Bending |
Minimum Bending Degree |
mm |
85° |
|
|
|
Width x Length x Height |
cm |
75x105x110 |
|
|
Space |
m³ |
0.86 |
||
|
Total Weight |
kg |
350 |
||
|
Electrical Information |
Power Consumption |
Engine |
kW |
1,1 |
|
Control System |
PLC |
|
|
|
|
Electrical System |
Operating Voltage |
V |
380 |
|
|
Controlling Voltage |
V |
24 DC |
||
|
Transformer |
KVA |
0,1 |
||
|
Normal Operation Amperes |
A |
3 |
||
|
Hydraulic Infrmation |
Operation Pressure |
Bar |
180 |
|
|
Valve Controls |
V |
24 DC |
||
|
Oil Capacity |
Minimum |
Lt |
9 |
|
|
Maximum |
Lt |
18 |
||

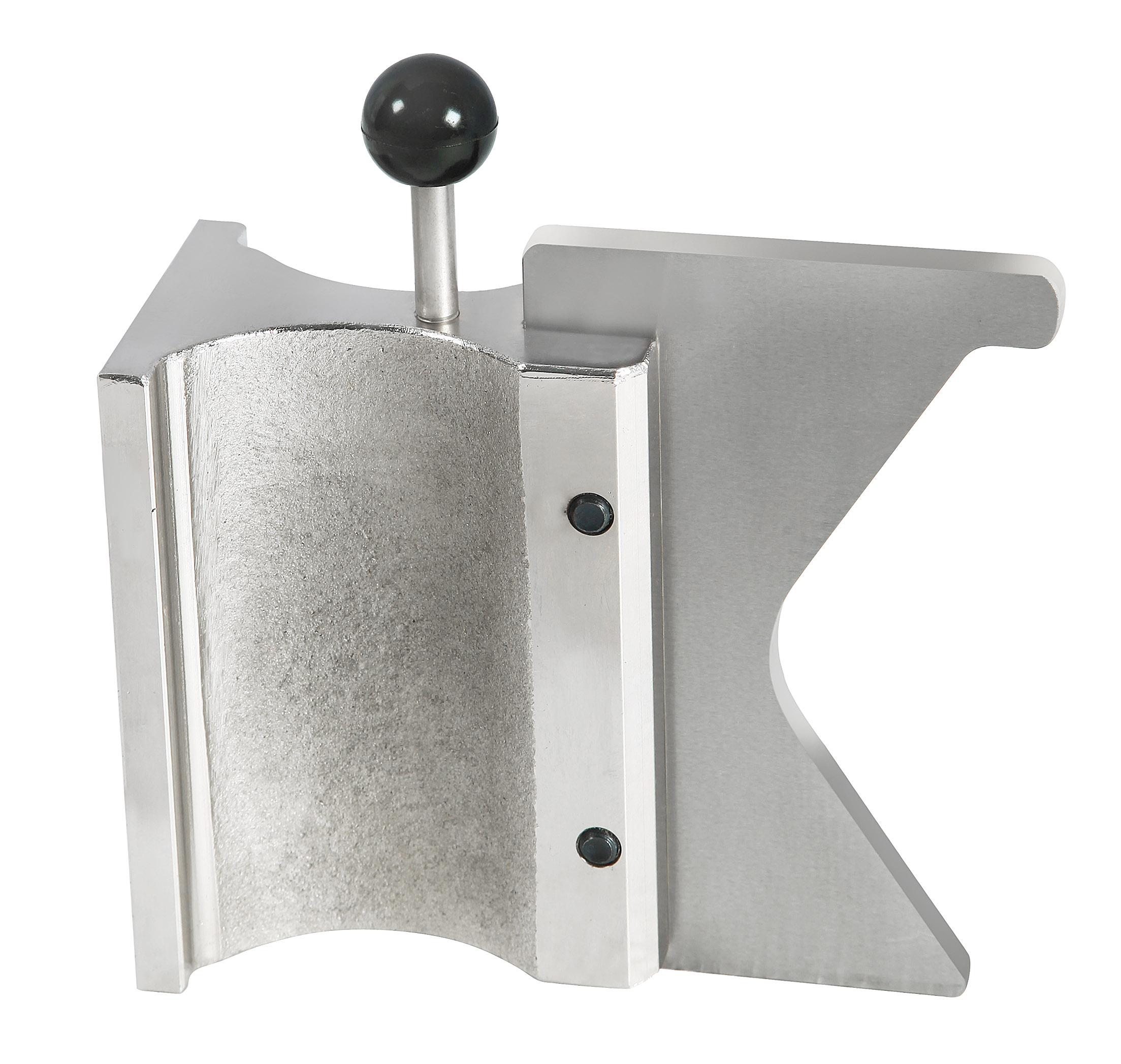

Standard Tools |
Optional Tools |
|
Punching Tool |
Din Rail Cutter Tool |
|
Cutting Tool |
Flexi Punching Tool |
|
Wide Bending Tool R10 |
Crimping Tool 6-300 mm² |
|
Wide Bending Tool Die R10 |
4 punching at one time |
|
Narrow Bending Tool Die R10 |
3 punching at one time |
|
Narrow Bending Tool R5 |
Radius Cutting Tool |
|
Narrow Bending Tool Die R5 |
Special Bending Tools |
|
Length stop |
|
|
Foot switch |
|
PUNCHING TOOL TABLE |
|||
|
Metric |
Free parts with machine |
Optional Round |
Optional |
|
3 |
|
4 |
|
|
4 |
|
5 |
|
|
6 |
6.6 |
7 |
7x11 |
|
8 |
9 |
10 |
9x13 |
|
10 |
11 |
12 |
11x15 |
|
12 |
14 |
13 |
13x17 / 14x18 |
|
14 |
16.5 |
|
16x19 |
|
16 |
|
18 |
|
|
18 |
|
19 |
|
|
20 |
|
21 |
|
  |
|
 |
|
 |
|
