Copper Busbar Cutting, Punching, Bending Equipments

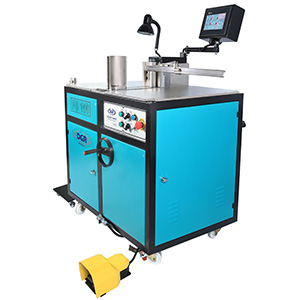

PS 160 PLC Busbar Cutting, Punching, Bending Machine 15x160mm

Quick Menu / Other Products

Machine process copper bars up to 15x160 mm. Perfect design of it enables you to mount tools into machine in a very short time for cutting, punching and bending processing. It has options of programmable accurate degree settings, hand or foot pedal control on bending process. You may lift bar up and make smooth punching from bottom due to fly wheel in front of machine.

  • 7″ Touch screen
  • To be able to enter the degree of bending
  • Choosing the bending tool
  • To make the offset for angle
  • Precision bending adjustment 2 times
  • Saving memory of 100 program
  • 10 different bending degree in a program
  • Programs can be saved by name
  • Hydraulic moving body
  • Up and down the screen to see the main body of values
  • Copper carrying stand is available for a long copper
  • Adjustable of lenght linear ruler
  • Foot switch
  • Cabinet for put of tools
  • Waste discharge channel
  • Ring bolt hole for lift
  • Easly tools change
  • Cutting and Punching without burr

Technical Specifications

PS160

 Mechanic  Information

 Cutting

 Maximum Capacity

mm

15x160

 Punching

 Minimum – Maximum Diamater

mm

Ø6~21

 Bending

 Minimum Bending Degree

mm

85°


 Dimensions/
 Weight

 Width x Length x Height

cm

80x105x110

 Space

m³

0.92

 Total Weight

kg

380





 Electrical  Information

 Power Consumption

 Engine

kW

1,5
Three-phase

 Control System

 Delta PLC
 Delta HMI



 DVP14SS211T
DOP-B07S411



 Electrical System

 Operating Voltage

V

380

 Controlling Voltage

V

24 DC

 Transformer

KVA

0,1

 Normal Operation Amperes

A

3



 Hydraulic Infrmation

 Operation Pressure

Bar

180

 Valve Controls

V

24 DC

 Oil Capacity

 Minimum

Lt

9

 Maximum

Lt

18



Standard Tools

Optional Tools

 Punching Tool
 Round Ø6,6 – Ø9 – Ø11 – Ø14 – Ø16,5 ( 5 Pcs. Punch-Die)

 Din Rail Cutter Tool

 Cutting Tool

 Flexi Punching Tool

 Wide Bending Tool R15
 Wide Bending Tool Die R15

 Crimping Tool 6-300 mm²

 Wide Bending Tool R10

 4 punching at one time

 Wide Bending Tool Die R10

 3 punching at one time

 Narrow Bending Tool R5

 Radius Cutting Tool

 Narrow Bending Tool Die R5

 Special Bending Tools

 Length stop



 Foot switch





PUNCHING TOOL TABLE

Metric

Free parts with machine
Ø mm

Optional Round
Ø mm

Optional
Elliptic
mm

3



4



4



5



6

6.6

7

7x11

8

9

10

9x13

10

11

12

11x15

12

14

13

13x17 / 14x18

14

16.5



16x19

16



18



18



19



20



21





Delme Takımları
  • Punching Tool
  • Round Ø6,6 - Ø9 - Ø11 - Ø14 - Ø16,5 Punching Tools (5 Set Punch-Die)

  • Cutting Tool

  • Wide Bending Tool R10
  • Wide Bending Tool Die R10
  • Narrow Bending Tool Die R10
  • Narrow Bending Tool R5
  • Narrow Bending Tool Die R5
